Outdoor sports fields, marinas, golf courses, construction sites, parks, and outdoor sports venues all need a defibrillator within 3 minutes, but a unit designed for an air-conditioned office hallway will fail in driving rain, salt mist, or freezing temperatures. The fix is choosing an AED engineered for outdoor exposure plus pairing it with a properly heated, locked outdoor cabinet.
This guide ranks the most weather-tolerant AEDs available in 2026, explains how IP ratings actually work, and walks through cabinet pairings that keep your unit functional from -4 °F to +122 °F.
Understanding IP ratings (and why they matter)
IP ratings come from the International Electrotechnical Commission’s IEC 60529 standard. An IP rating is two digits:
- First digit (solids): 0 to 6, where 6 = dust-tight
- Second digit (liquids): 0 to 8, where 4 = splash-resistant, 5 = water jet, 6 = strong water jet, 7 = full immersion
For an outdoor AED, IP55 is the minimum acceptable standard. IP56 is preferred for direct rain exposure or wash-down environments. No AED on the U.S. market is fully submersible (IP67+), outdoor units must still be housed in a sheltering cabinet.
Top 5 Outdoor AEDs (2026)
| Rank | Model | IP rating | Drop test | Operating temp | Best for |
|---|---|---|---|---|---|
| 1 Top Pick | HeartSine Samaritan PAD 450P | IP56 | 1 m | 32 to 122 °F | Sports fields & rain exposure |
| 2 | HeartSine Samaritan PAD 360P | IP56 | 1 m | 32 to 122 °F | Outdoor venues & events |
| 3 | Philips HeartStart FRx | IP55 | 1.5 m | 32 to 122 °F | Construction sites & rugged use |
| 4 | ZOLL AED Plus | IP55 | 1 m | 32 to 122 °F | Pool decks & outdoor gyms |
| 5 | Defibtech Lifeline VIEW | IP54 | 1 m | 32 to 122 °F | Sheltered outdoor placements |
Important: No FDA-approved AED on the U.S. market operates below freezing without a temperature-controlled cabinet. Battery chemistry degrades sharply below 32 °F.
1. HeartSine Samaritan PAD 450P, Best Outdoor Overall
The HeartSine Samaritan PAD 450P includes everything in the 360P, plus an integrated CPR rate advisor, a real-time metronome and rate indicator built into the device. With an IP56 rating, an 8-year warranty, and the smallest footprint in the category, it’s the unit we recommend for outdoor sports complexes, golf courses, and parks.
2. HeartSine Samaritan PAD 360P, Best Fully-Automatic Outdoor
The HeartSine 360P delivers a shock automatically without a button press, useful when wearing gloves outdoors or in panic-stress conditions. Same IP56, same PAD-PAK 4-year cartridge, and the same 8-year warranty.
3. Philips HeartStart FRx, Best Rugged Drop-Tested Outdoor
The Philips HeartStart FRx survives a 1.5 m drop (highest in this category), IP55 rated. The plastic shell is reinforced; the SMART Pads II handle adults or children via the Infant/Child Key.
4. ZOLL AED Plus, Best Outdoor With CPR Feedback
The ZOLL AED Plus at IP55 with real-time CPR depth feedback. The trade-off is size, slightly larger than HeartSine, but worth it on a remote sports field where the rescuer may not have CPR re-certification.
5. Defibtech Lifeline VIEW, Best for Sheltered Outdoor
The Defibtech Lifeline VIEW at IP54 is fine for covered outdoor placements (pavilions, sheltered cabinets) but not direct exposure. The video screen is a strong training reinforcement for occasional users.

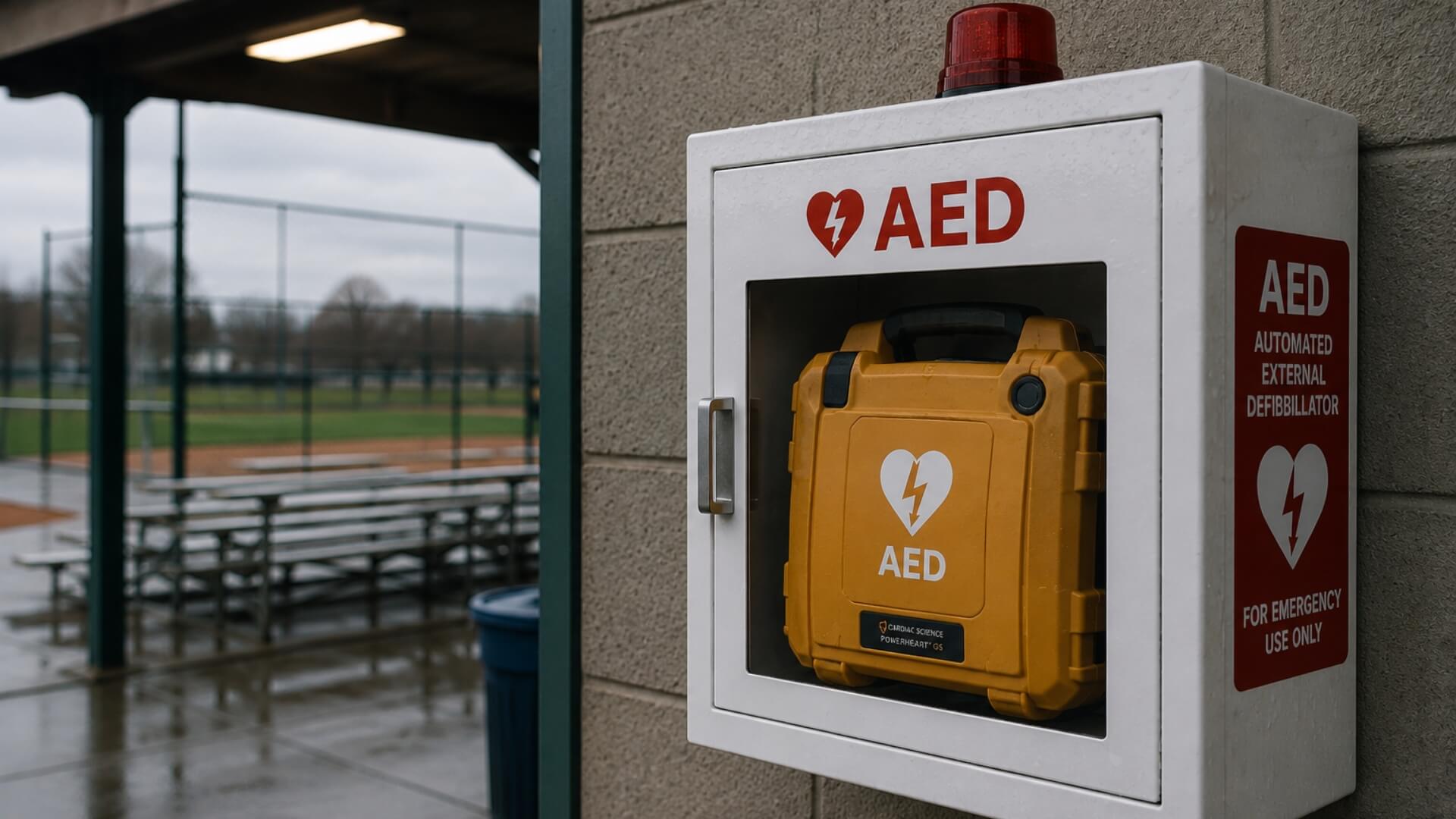

Outdoor cabinet pairings (non-negotiable)
The IP rating on the AED itself is the second line of defense. The first is a proper outdoor AED cabinet with:
- UV-resistant exterior housing
- Heated interior (above 35 °F minimum) for cold climates
- Audible alarm + strobe on door opening (anti-theft)
- Cellular or hardwired remote monitoring (optional)
- Locked but bystander-accessible door (push-to-open)
A basic outdoor cabinet starts at $293.25 at AED Leader; heated, alarmed and monitored cabinets cost more. Common manufacturers: Cubix Safety, Defibtech CarePoint, AED Brands.
Replacing your AED pads or battery
AED pads and batteries expire on a fixed schedule whether the device is ever used or not, and they are the single most common reason an AED fails when it is needed. In the largest published analysis of FDA-reported AED events, 40,787 cases, batteries accounted for 23.2 per cent of failures and pads and connectors for 23.7 per cent, so 46.9 per cent of all AED failures are consumables (DeLuca et al., Annals of Emergency Medicine, 2012, PMID 21872969). Below is every current replacement part with its price and service life, verified against seller product data on 12 September 2026.
| Model | Adult pads | Battery | Pediatric option | 10 year consumable cost |
|---|---|---|---|---|
| Philips HeartStart OnSite | M5071A $99.00, 2 years | M5070A $249.00, 4 years | Separate M5072A cartridge, prescription only | About $894 |
| Philips HeartStart FRx | SMART Pads II 989803139261 $89.00, 2 years | M5070A $249.00, 4 years | Infant/Child Key $139.00, reusable | About $854 |
| ZOLL AED Plus | CPR-D Padz 8900-0800-01 $230.00, 5 years | Lithium set of 10 $100.00, 5 years | Pedi-padz II $155.00, 2 years | About $330, the lowest we track |
| ZOLL AED 3 | CPR Uni-padz 8900-000280-01 $234.00, 5 years | 8000-000696 $201.00, 5 years | None needed, Uni-padz cover children | About $435 |
| Defibtech Lifeline | DDP-100 $75.15 | DBP-1400 $229.10 | DDP-200P $130.25 | About $530 |
| Defibtech Lifeline VIEW | DDP-2001 $83.05 | DCF-2003 $240.45 | DDP-2002 $136.40 | About $813 |
| HeartSine Samaritan PAD | Pad-Pak-01 $236.00, pads and battery in one cartridge | Included in the Pad-Pak, there is no separate battery | Pediatric Pad-Pak PAD-PAK-02 $279.00 | About $472 |
| Cardiac Science Powerheart G5 | XELAED001C $88.00 | XBTAED001A $495.00, 4 years | XELAED003C $127.00 | About $1,342, the highest we track |
| Physio-Control LIFEPAK CR2 | Quik-Step 11101-000021 $196.00, adult and child in one set | LIFEPAK CR2 lithium battery $341.00, about 4 years | None needed, the Quik-Step set covers children | About $1,074 |
Prices verified against the public product data of AED Leader on 30 September 2026. Service life is the manufacturer figure where one is published; where it is not, check the expiry date printed on the part itself. Ten year consumable cost is our own calculation from those part prices and service lives.
Three things owners get wrong
- Buying the wrong Philips pad. The FRx uses SMART Pads II, part 989803139261. SMART Pads III belong to the FR3, a different device. The OnSite uses M5071A and the two are not interchangeable.
- Assuming the pediatric part is optional. On a ZOLL AED Plus, Pedi-padz II cost $155.00 and last two years, which is about $775 across a ten year life. On a ZOLL AED 3 or a LIFEPAK CR2 the pads already cover children and that cost is zero.
- Tracking the wrong date. HeartSine combines the pads and battery into one Pad-Pak cartridge, so there is a single expiry to track. Every other model here has two parts on two separate clocks.
Full replacement schedule by model is on our AED pads and batteries page. If you are still choosing a device, the ten year running cost is usually a bigger number than the discount you are negotiating: see every AED brand ranked by price and ten year cost.
Covering a stadium, field or athletics program? See our AED packages for sports stadiums guide for weather-rated models and how many units a venue needs.
Frequently Asked Questions
What IP rating do I need for an outdoor AED?
IP55 is the minimum (resists water jets and most dust). IP56 is the gold standard for rain and outdoor sports venues. No FDA-approved AED in the U.S. is fully waterproof (IP67+) , always pair with a cabinet.
Can an AED freeze and stop working?
Yes. Battery chemistry degrades below 32 °F, and most pads’ conductive gel will fail in extreme cold. Use a heated outdoor cabinet in any climate with sub-freezing winters.
Are AEDs allowed outdoors in the rain during use?
Per AHA 2020 guidelines, an AED can be used in light rain or snow. Move the patient to a dry surface if possible. Do not deploy in standing water; dry the patient’s chest before applying pads.
What’s the difference between IP54, IP55, and IP56?
IP54 = splash-resistant. IP55 = withstands a 6.3 mm water jet. IP56 = withstands a 12.5 mm heavy water jet. For outdoor exposure, choose IP55 or IP56.
How much does an outdoor AED cabinet cost?
A basic outdoor cabinet starts at $293.25 at AED Leader. Heated, alarmed and remotely monitored cabinets cost more, so get a quote for your climate.
Rugged picks for outdoor use
Prices checked 30 September 2026 at AED Leader. Each link opens our full review with the buy path.
- Philips HeartStart FRx review and price$2,099 to $2,199New, 8-year manufacturer warranty
- Recertified Philips HeartStart FRx review and price$875Save 58%Recertified, 3-year warrantyBuy at AED Leader
- ZOLL AED 3 review and price$2,399New, 6-year manufacturer warranty (8 with ZOLL registration)
Get your team certified the easy way.
Sources & References
- IEC 60529, IP Rating Standard
- AHA 2020 CPR & ECC Guidelines
- Manufacturer ingress-rating specs: HeartSine, Philips, ZOLL, Defibtech
Disclaimer: For informational purposes. Always pair outdoor AEDs with a properly rated (and heated, where applicable) cabinet.
